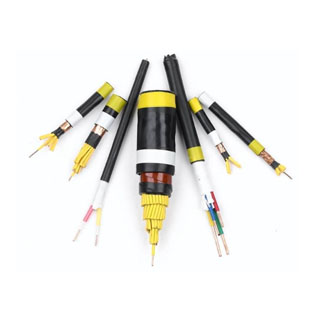

KVV22 19×0.75-61×2.5 控制电缆
电缆导体的允许长期**工作温度为70℃。电缆敷设时环境温度不低于0℃。
KVV22 19×0.75-61×2.5 控制电缆
使用特性：额定电压：U0/U为450/750V
电缆导体的允许长期**工作温度为70℃。电缆敷设时环境温度不低于0℃。电缆的允许弯曲半径：无铠装层及有纺织屏蔽的电缆，应不小于电缆外径的6倍；有铠装或铜带屏蔽结构的电缆，应不小于电缆外径的12倍
用途：本产品供交流额定电压500V或直流电压1000V及以下配电装置中电器，仪表接线之用。
KVV22 19×0.75-61×2.5 控制电缆规格参数：
|
芯数×标称截面 |
电缆参考外径mm |
电缆参考重量mm |
20℃**直流电阻 |
70℃最小绝缘电阻 |
|
19×0.75 |
17.8 |
489 |
24.5 |
0.012 |
|
19×1.0 |
19.0 |
576 |
18.1 |
0.011 |
|
19×1.5 |
21.3 |
744 |
12.1 |
0.011 |
|
19×2.5 |
24.4 |
1032 |
7.41 |
0.010 |
|
24×0.75 |
20.5 |
611 |
24.5 |
0.012 |
|
24×1.0 |
21.4 |
399 |
18.1 |
0.011 |
|
24×1.5 |
24.2 |
912 |
12.1 |
0.011 |
|
24×2.5 |
27.9 |
1275 |
7.41 |
0.010 |
|
27×0.75 |
20.8 |
646 |
24.51 |
0.012 |
|
27×1.0 |
21.8 |
743 |
18.1 |
0.011 |
|
27×1.5 |
24.6 |
974 |
12.1 |
0.011 |
|
27×2.5 |
28.4 |
1371 |
7.41 |
0.010 |
|
30×0.75 |
21.4 |
692 |
24.5 |
0.012 |
|
30×1.0 |
22.4 |
799 |
18.1 |
0.011 |
|
30×1.5 |
25.4 |
1052 |
12.1 |
0.011 |
|
30×2.5 |
29.3 |
1489 |
7.41 |
0.010 |
|
37×0.75 |
22.7 |
796 |
24.5 |
0.012 |
|
37×1.0 |
23.8 |
924 |
18.1 |
0.011 |
|
37×1.5 |
27.0 |
1227 |
12.1 |
0.011 |
|
37×2.5 |
33.1 |
2092 |
7.41 |
0.010 |
|
44×0.75 |
24.9 |
923 |
24.5 |
0.012 |
|
44×1.0 |
26.2 |
1075 |
18.1 |
0.011 |
|
44×1.5 |
31.7 |
1757 |
12.1 |
0.011 |
|
44×2.5 |
37.0 |
2472 |
7.41 |
0.010 |
|
48×0.75 |
25.3 |
970 |
24.5 |
0.012 |
|
48×1.0 |
26.6 |
1133 |
18.1 |
0.011 |
|
48×1.5 |
32.2 |
1845 |
12.1 |
0.011 |
|
48×2.5 |
37.6 |
2607 |
7.41 |
0.010 |
|
52×0.75 |
25.9 |
1027 |
24.5 |
0.012 |
|
52×1.0 |
27.2 |
1203 |
18.1 |
0.011 |
|
52×1.5 |
32.9 |
1952 |
12.1 |
0.011 |
|
52×2.5 |
38.5 |
2767 |
7.41 |
0.010 |
|
61×0.75 |
27.2 |
1153 |
24.5 |
0.012 |
|
61×1.0 |
28.6 |
1356 |
18.1 |
0.011 |
|
61×1.5 |
34.6 |
2187 |
12.1 |
0.011 |
|
61×2.5 |
40.5 |
3122 |
7.41 |
0.010 |
